Sound LevelWith its wide capacity range, it offers solutions tailored to capacity needs. The new technology called 'gas adaptive system' ensures safe, comfortable, and efficient combustion.
| TECHNICAL DATA | UNIT | Enerwa 24/31 Enerwa Plus 24/31 | Enerwa 28/35 Enerwa Plus 28/35 | Enerwa 33/39 Enerwa Plus 33/39 | Enerwa Plus 42/40 | Enerwa Plus 45/43 | |||||
| Gas Circuit / Gas Type | NG / G20 | LPG / G31 | NG / G20 | LPG / G31 | NG / G20 | LPG / G31 | NG / G20 | LPG / G31 | NG / G20 | LPG / G31 | |
| Gas Supply Pressure | mbar | 20 | 37 | 20 | 37 | 20 | 37 | 20 | 37 | 20 | 37 |
| Gas Consumption at Minimum / Maximum | m³/h | 0.37 / 2.38 | 0.11 / 0.92 | 0.40 / 3.05 | 0.14 / 1.18 | 0.43 / 3.40 | 0.17 / 1.3 | 0.7 / 4.0 | 0.3 / 1.6 | 0.7 / 4.2 | 0.3 / 1.7 |
| Seasonal Space Heating Energy Class / Efficiency (ŋs) | % | A / 92 | A / 92 | A / 92 | A / 92 | A / 91 | A / 92 | A / 91 | |||
| Useful efficiency at rated heat output and high temperature regime(2) (ŋ4) | % | 87,6 | 87,7 | 88,0 | 88,6 | 88,2 | 88,0 | 87,4 | 87,4 | 87,4 | 87,4 |
| Useful efficiency at 30% of rated heat output and low temperature regime(1) (ŋ1) | % | 97,5 | 97,7 | 96,8 | 96,9 | 96,9 | 96,6 | 96,6 | 96,6 | 96,6 | 96,6 |
| Radiator Circuit / Temperature Selection Range High / Low | °C | 25 - 80 / 25 - 47 | |||||||||
| Useful heat output at rated heat output and high temperature regime (2) (P4) | kW | 23,7 | 23,7 | 28 | 28 | 33,02 | 33,02 | 38,2 | 38,2 | 41,4 | 41,3 |
| Useful heat output at 30% of rated heat output and low temperature regime (1) (P1) | kW | 4,34 | 4,4 | 4,97 | 4,85 | 5,72 | 6,09 | 7,91 | 7,91 | 7,91 | 7,91 |
| (50/30 °C) Efficiency at Minimum / Maximum Heat Output Pn | kW | 3.6 / 25 | 2.9 / 25 | 3.9 / 30 | 3.9 / 30 | 3.6 / 35.5 | 2.9 / 25 | 7.6 / 42 | 7.5 / 42 | 7.6 / 45 | 7.5 / 44 |
| Operating Pressure (Minimum / Maksimum) | bar | 0.5 / 3 | |||||||||
| Expansion Vessel | liter | 8 | 10 | 10 | 12 | 12 | |||||
| Maximum Pump Pressure (Q = 0 m³/h) | mH2O | 6,2 | 7,6 | 7,6 | 7,6 | 8 | |||||
| Maximum Pump Flow Rate | l/h | 2300 (H = 0.8 mH2O) | 2500 (H = 0.4 mH2O) | 2500 (H = 0.4 mH2O) | 2300 (H = 0.4 mH2O) | 2800 (H = 0.8 mH2O) | |||||
| Domestic Hot Water Circuit / Temperature Adjustment Range | °C | 35 - 60 | |||||||||
| Water Heating Energy Efficiency Class / Declared Load Profile | A / L | A / XL | A / XL | A / XL | A / XL | A / XXL | A / XL | A / XL | A / XL | A / XL | |
| Water Heating Energy Efficiency | % | 81 | 84 | 83 | 84 | 82 | 81 | 81 | |||
| Maximum DHW Heat Input (Minimum / Maximum) | kW | 3.5 / 31.2 | 3.75 / 35 | 4.35 / 38.8 | 7.2 / 39.5 | 7.2 / 42.5 | |||||
| Modulation Range | 1/10 (11% - %100) | 1/10 (11% - %100) | 1/10 (11% - %100) | 1/5 (18% - %100) | 1/6 (17% - %100) | ||||||
| Domestic Hot Water flow rate (Δt: 30 °C) (Minimum / Maximum) | l/min | 1.5 / 15 | 1.5 / 17 | 1.5 / 19 | 1.5 / 18 | 1.5 / 20 | |||||
| DHW Water Pressure (Minimum / Maximum) | bar | 0.5 / 10 | |||||||||
| Electricity Circuit / Electricity Supply / Protection Index | [230 V +%10; -%15] / IP X 5D | ||||||||||
| Electricity Consumption (Min./Max.) | Watt | 95 / 55 | 104 / 60 | 115 / 65 | 149 / 90 | 154 / 90 | |||||
| Exhaust Gas Circuit | NG | LPG | NG | LPG | NG | LPG | NG | LPG | NG | LPG | |
| (80/60 °C) Exhaust gas temperature (Minimum / Maximum) | °C | 69 / 71 | 60 / 70 | 61/ 66 | 58 / 65 | 57 / 62 | 58 / 67 | 60 / 65 | 54 / 66 | 61 / 66 | 55 / 67 |
| (50/30 °C) Exhaust gas temperature (Minimum / Maximum) | °C | 49 / 51 | 47 / 51 | 45 / 45 | 43 / 45 | 47 / 44 | 49 / 49 | 34 / 42 | 34 / 43 | 35 / 43 | 35 / 44 |
| Weighted Value of NOX (GCV) / NOX Class: 6 | mg/kWh | 20 | 31 | 41 | 49 | 34 | 53 | 25 | 50 | 27 | 53 |
| Maximum Flue Lenght (Ø60/100 mm) [Horizontal* / (Vertical*] | m | 10 / 11 | 10 / 11 | 10 / 11 | 10 / 11 | 10 / 11 | |||||
| Type | C13. C33. C53. C63. C83. C93. C103. B23. B23P. B33 | C13. C33. C43. C53. C63. C83. B23. B23P | |||||||||
| General / Dimensions H x W X D | mm | 725 x 420 x 288 [Volume < 87.7 Liter] | 725 x 420 x 385 [Volume < 117.2 Liter] | ||||||||
| Sound Level | dB (A) | 52 | 54 | 50 | 58 | 58 | |||||
| Net Weight / Packed Device Weight | kg | 33.5 / 34.7 | 34.7 / 35.9 | 35.5 / 36.7 | 37.5 / 39.5 | 38 / 40 | |||||
| (1) Low temperature means for condensing boilers 30 °C, for low temperature boilers 37 °C and for other heaters 50 °C return temperature (at heater inlet). (2) High temperature regime means 60 °C return temperature at heater inlet and 80 °C feed temperature at heater outlet. (*) At the maximum flue distance, the flue length should be reduced by 1 meter for every 90° bend and 0.5 meter for every 45° bend. |
|||||||||||
High Protection System/bypass circuit and prevents the pump from overworking

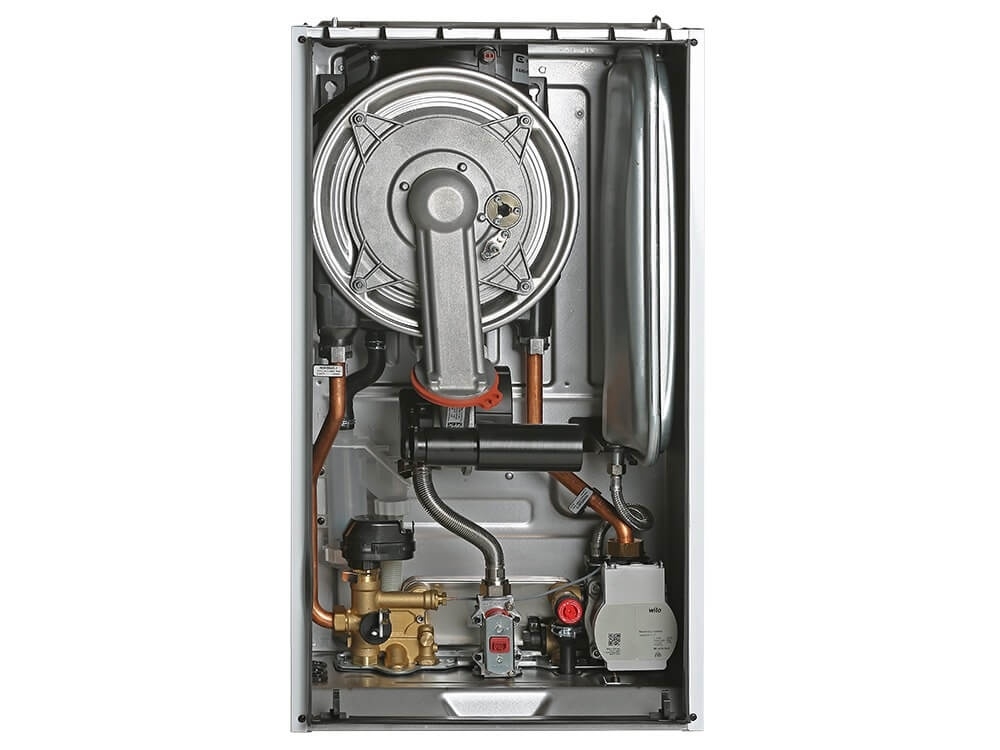

Featuring brass and composite components that are resistant to thermal stresses and corrosion, ensuring a long lifespan and years of trouble-free use.
Backlight Screen, wide information screen that allows you to access information about heating, pressure, and adjustments.
Operates very quietly thanks to high body insulation.
