6 Connection (MCV) Panel Radiators

Usage
Long-Lasting Usage and Superior Quality

Options

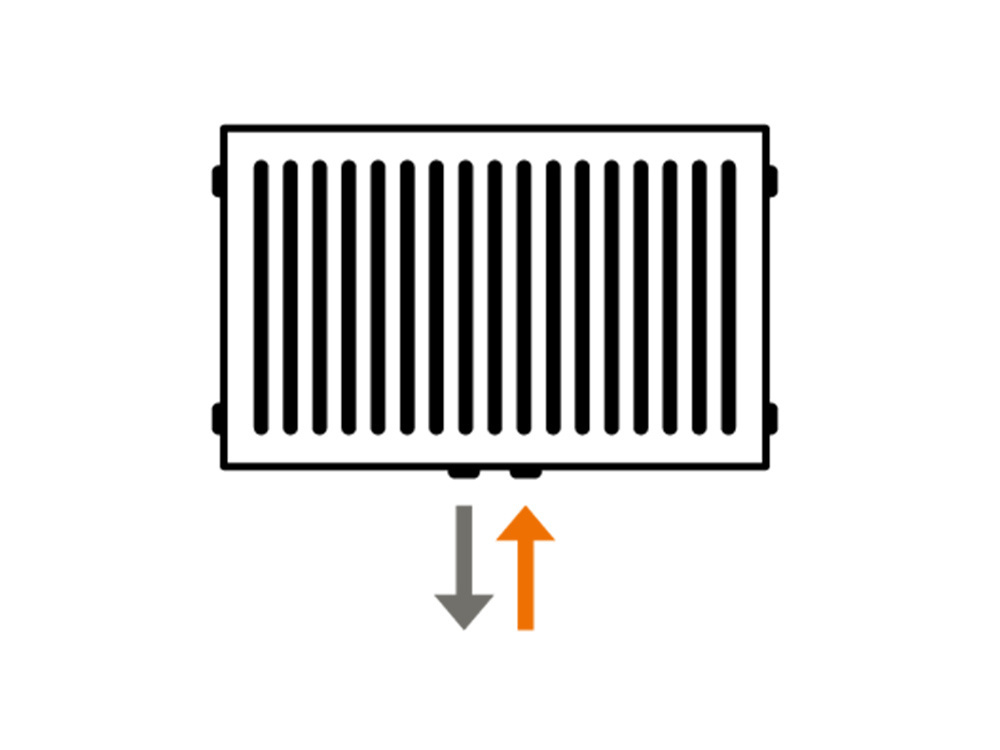

Middle connection option , Thermostatic control, Various Length Options

Efficiency
High Efficiency and Thermal Power

With its extensive product range, Warmhaus Compact Radiators fits perfectly in every living space, middle connection option

TYPE	Nominal Size (mm)	Center of Distance (mm)	Width (mm)	Length Min. - Max. (mm)	Water Content (L/m)
21 PKP	300	300	70	400 - 3000	3,78
	400	400	70	400 - 3000	4,79
	500	500	70	400 - 3000	5,79
	600	600	70	400 - 3000	6,80
	900	900	70	400 - 3000	10,20
22 PKKP	300	300	105	400 - 3000	3,78
	400	400	105	400 - 3000	4,79
	500	500	105	400 - 3000	5,79
	600	600	105	400 - 3000	6,80
	900	900	105	400 - 3000	10,20
For technical specifications of all Panel Radiator models, you can use the technical brochure or catalogue on our website!

PANEL RADIATORS HEAT EFFICIENCY TABLE- 75/65/20 °C DT:50
Height (Nominal: mm)	TYPE 10		TYPE 11		TYPE 20		TYPE 21		TYPE 22		TYPE 23
Height (Nominal: mm)	watt	kcal	watt	kcal	watt	kcal	watt	kcal	watt	kcal	watt	kcal
300	353	304	505	435	609	525	764	659	967	834	1373	1184
400	442	381	645	556	768	662	962	829	1225	1056	1748	1507
500	528	455	777	670	921	794	1152	993	1474	1271	2103	1813
600	614	529	900	776	1068	920	1337	1153	1718	1481	2440	2103
700	699	603	1016	876	1207	1040	1518	1309	1959	1689	2762	2381
900	870	750	1228	1059	1484	1279	1874	1616	2432	2097	3366	2902
