Usage Usage
Long-Lasting Usage and Superior Quality
Options Options
Extensive color and design alternatives, Possibility for customization with flat and horizontal lines, Solution Option for Limited Spaces
Efficiency Efficiency
High Efficiency and Thermal Power

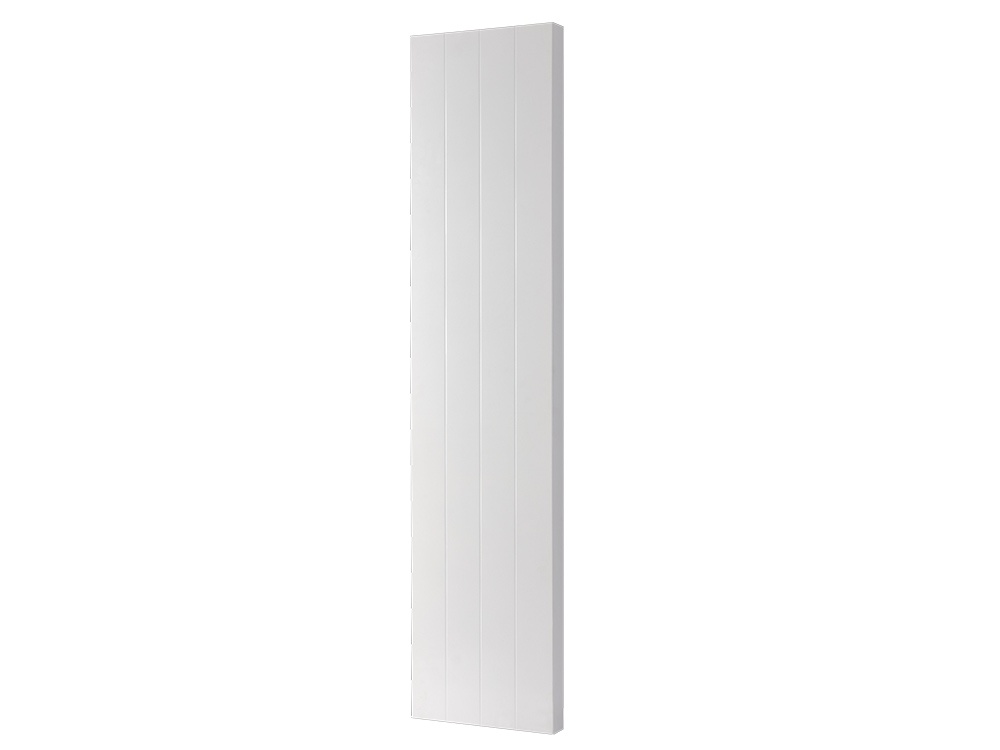

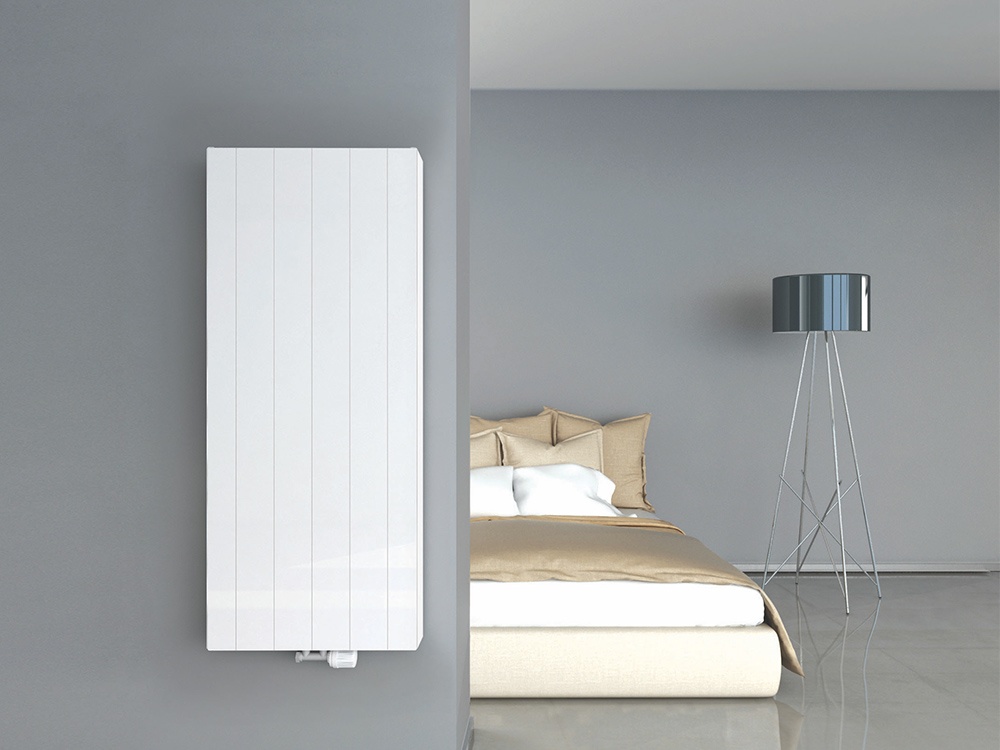

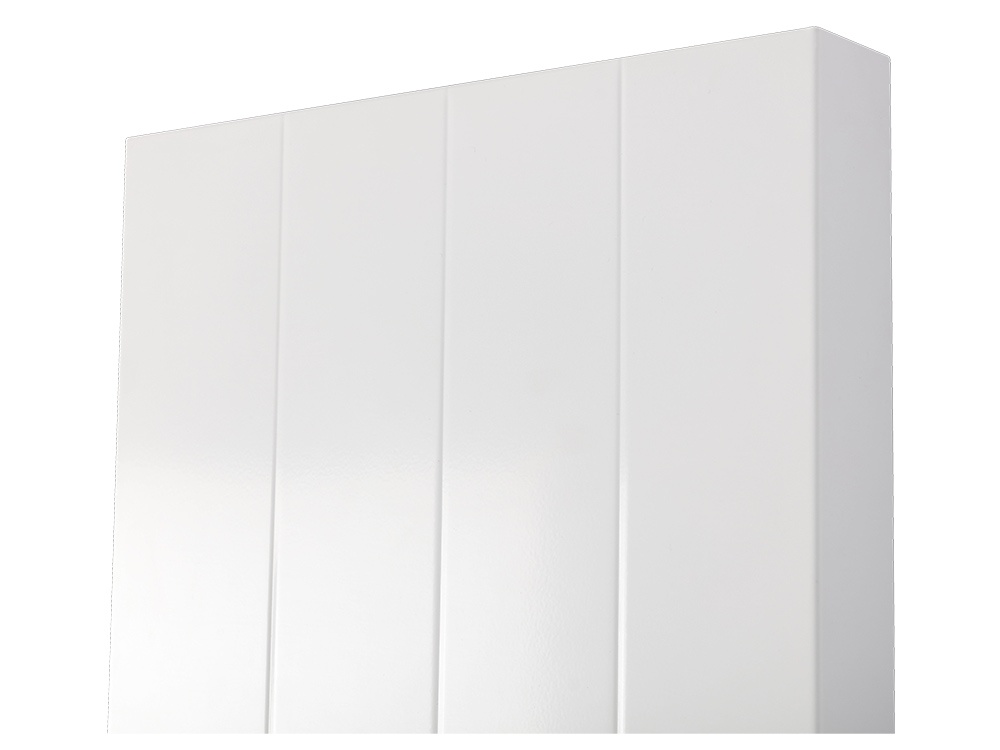

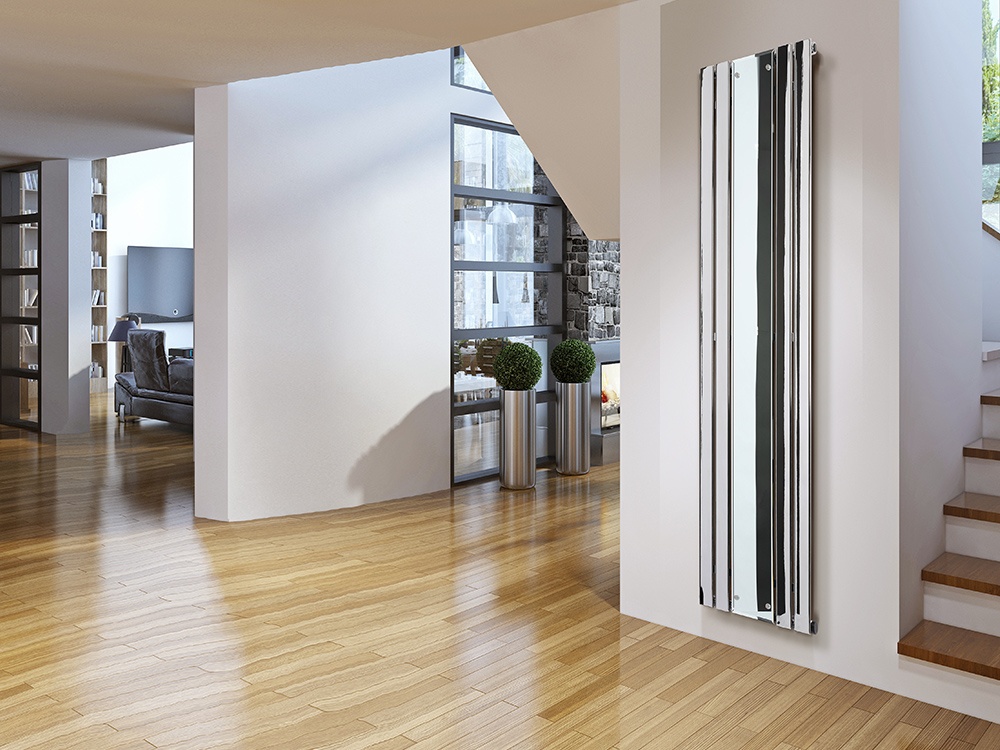

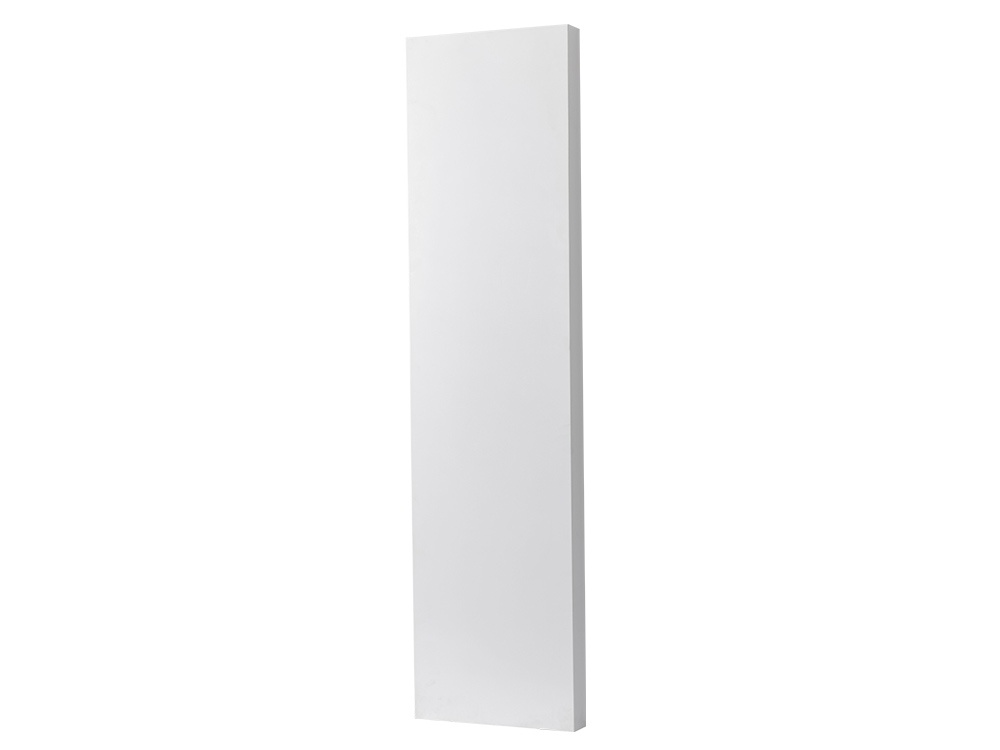

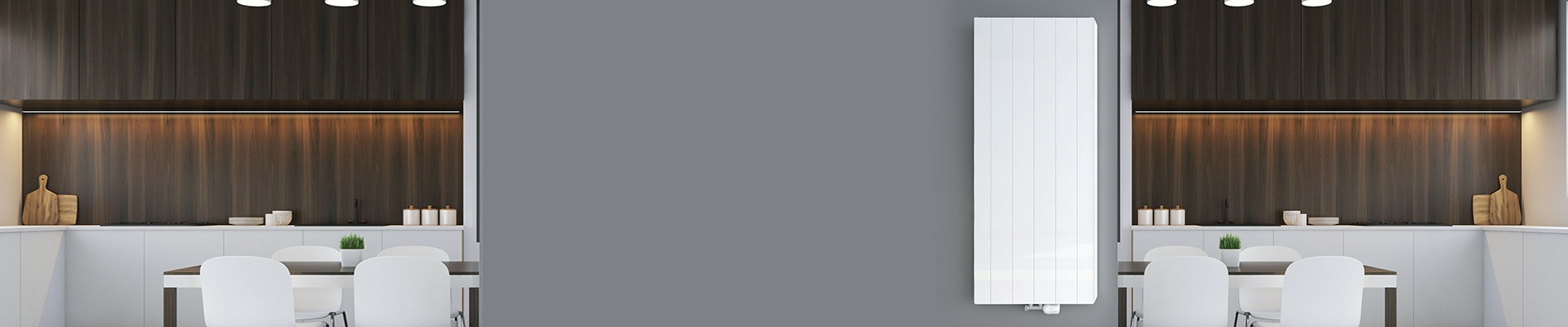

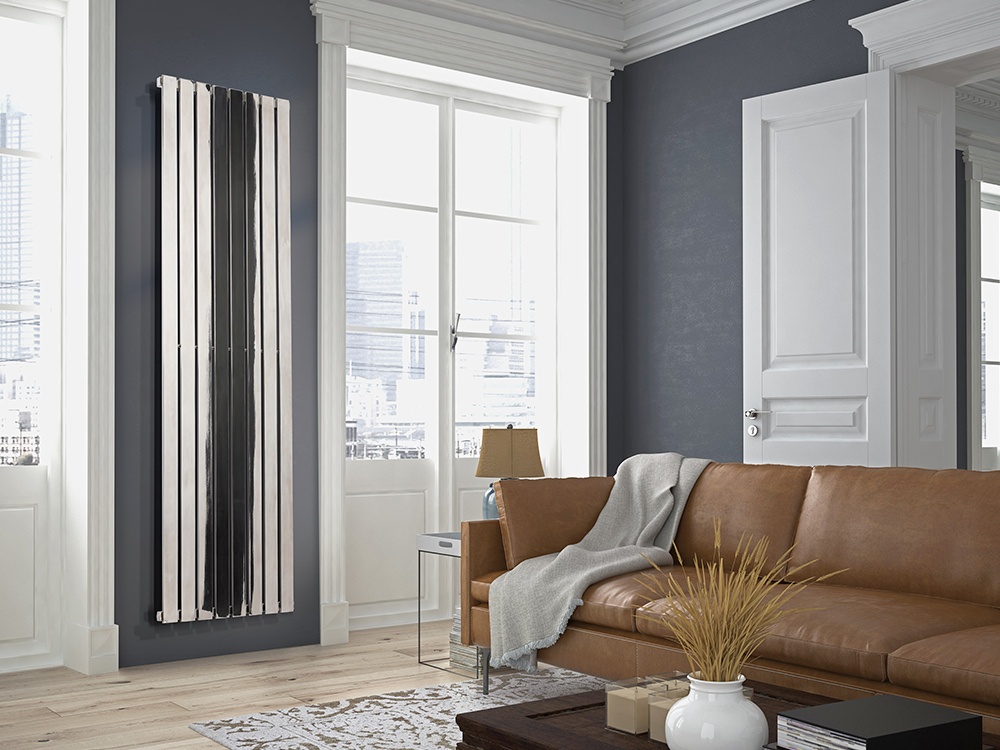

Warmhaus Vertical Radiators are the best solution for small spaces because they only occupy the height of the space. They are available as a standard panel, as well as flat, transverse, longitudinal striped and color options. In addition to being a decorative object, they also have high heat output levels.Vertical positioning alternative in order to optimal use of space.

  • Measurements;
    Type 10 - Width 45 mm,
    Type 20 - Width 70mm
  • Height: 1600-2400mm
  • Length: 400-500-600mm
  • Test Pressure: 13 bar
  • Max. Operating Pressure: 10 bar
  • Max Water Temperature: 110°C
  • Warranty: 10 Years
  • Number of Connections: 4 x DIN G ½
  • Pipe Diameter: 33mm bend
  • Maximum Sheet Metal Usage
  • High Corrosion Resistance
  • Paint with RAL9010 and RAL9016 color codes
  • Water Capacity: 6.8 liters
  • Test Pressure: 13 bar
  • Max. Operating Pressure: 10 bar
  • Max Water Temperature: 110°C
  • Warranty: 10 Years
  • Number of Connections: 4x and 6x DIN G ½
  • Maximum Sheet Metal Usage
  • High Corrosion Resistance
  • Paint with RAL9010 and RAL9016 color codes
  • High Thermal Efficiency
  • Elegant Design
  • Practical Installation
  • Extensive Product Range
Type 21(PCP) Type 22(PCP)
Height 300 400 500 600 700 750 900 300 400 500 600 700 750 900
300 196 246 296 347 385 405 463 250 322 393 464 517 543 622
400 261 328 395 462 514 540 617 334 429 524 619 689 724 829
500 326 410 494 578 642 675 771 417 536 655 774 862 905 1036
600 391 492 592 693 770 809 925 500 543 786 929 1034 1086 1243
700 456 574 591 809 899 944 1079 584 750 917 1084 1206 1267 1450
300 522 656 790 924 1027 1079 1234 667 858 1048 1238 1378 1448 1658
900 587 738 888 1040 1156 1214 1388 751 965 1179 1393 1551 1629 1865
1000 652 820 987 1155 1284 1349 1542 834 1072 1310 1548 1723 1810 2072
1100 717 902 1086 1271 1412 1484 1696 917 1179 1441 1703 1895 1991 2279
1200 782 984 1184 1386 1541 1619 1850 1001 1286 1572 1858 2068 2172 2486
1300 348 1066 1283 1502 1669 1754 2005 1084 1394 1703 2012 2240 2353 2694
1400 913 1148 1382 1617 1798 1889 2159 1168 1501 1834 2167 2412 2534 2901
1500 978 1230 1481 1733 1926 2024 2313 1251 1608 1965 2322 2585 2715 3108
1600 1043 1312 1579 1843 2054 2158 2467 1334 1715 2096 2477 2757 2896 3315
1700 1108 1394 1678 1964 2183 2293 2621 1418 1822 2227 2632 2929 3077 3522
1800 1174 1476 1777 2079 2311 2428 2776 1501 1930 2358 2786 3101 3258 3730
1900 1239 1558 1875 2195 2440 2563 2930 1585 2037 2489 2941 3274 3439 3937
2000 1304 1640 1974 2310 2568 2698 3084 1668 2144 2620 3096 3446 3620 4144
2100 1369 1722 2073 2426 2696 2833 3238 1751 2251 2751 3251 3618 3801 4351
2200 1434 1804 2171 2541 2825 2968 3392 1835 2358 2882 3406 3791 3982 4558
2300 1500 1886 2270 2657 2953 3103 3547 1918 2466 3013 3560 3963 4163 4765
2400 1565 1968 2369 2772 3082 3238 3701 2002 2573 3144 3715 4135 4344 4973
2500 1630 2050 2468 2888 3210 3373 3855 2085 2680 3275 3870 4308 4525 5180
2600 1695 2132 2566 3003 3338 3507 40O9 2168 2787 3406 4025 4480 4706 5387
2700 1760 2214 2665 3119 3467 3642 4163 2252 2894 3537 4180 4652 4887 5594
2800 1826 2296 2764 3234 3595 3777 4318 2335 3002 3668 4334 4824 5068 5802
2900 1891 2378 2862 3350 3724 3912 4472 2419 3109 3799 4489 4997 5249 6009
3000 1956 2460 2961 3465 3852 4047 4626 2502 3216 3930 4644 5169 5430 6216

Superior Features of Warmhaus

Warmhaus icon
Your warmth is guaranteed for years

With 10-year warranty panel radiators, your warmth is secure.

Warmhaus icon
High-pressure tested

Each device is tested at 13 bars before reaching your homes.

Warmhaus icon
Large dimensions

Compatibility for every home with dimensions ranging from 1600 cm to 2400 cm.

Warmhaus icon
High water volume

Offers higher efficiency compared to competitors with its high water volume.

Warmhaus icon

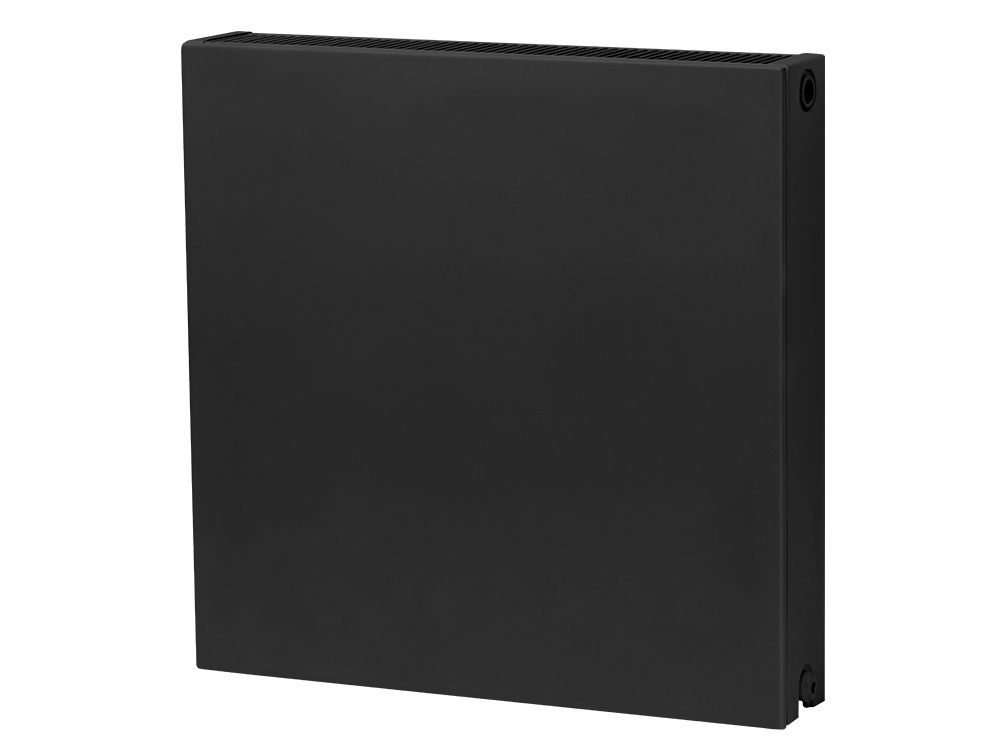

Custom colors

Custom colors with RAL9010 and RAL9016 codes.

Warmhaus icon
Standard connections

Standard connections compatible with every installation.

Warmhaus icon
Saving space

The perfect choice for those with limited space. In addition to saving space and being a decorative object in your living space, it is also efficient and offers high thermal values.
