Capacity
Control Panel

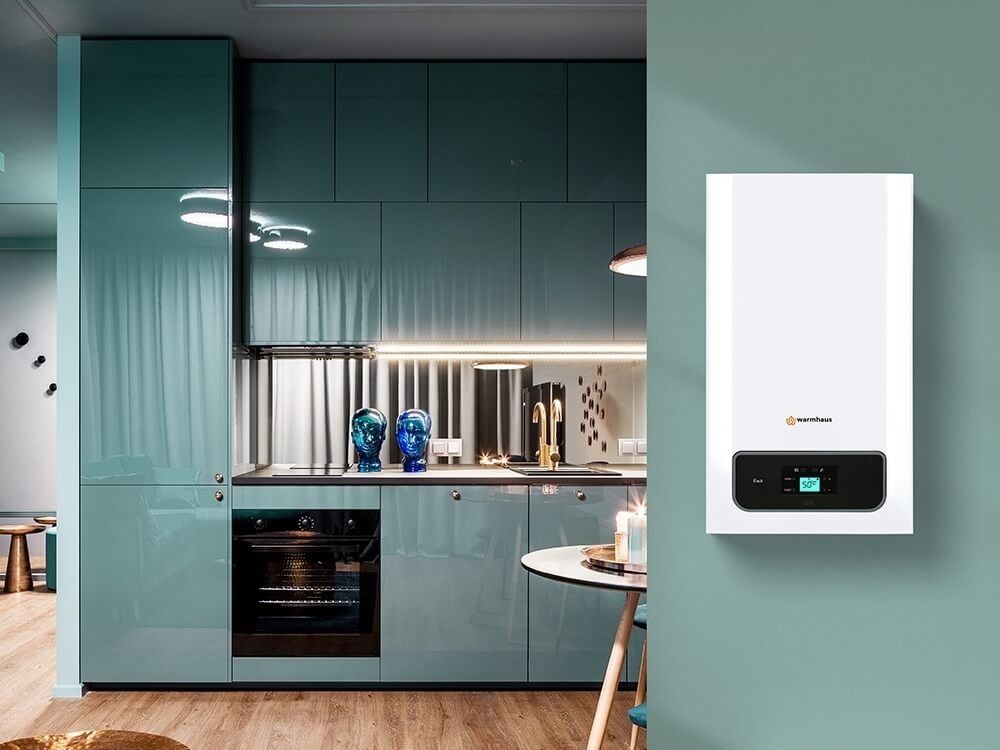

Sound LevelEwa, with a compact and aesthetic design, ensures efficiency, safety, and perfect combustion through the "Smart Gas" technology.
| TECHNICAL DATA | UNIT | WARMHAUS | |||||||
| Ewa 20 kW System Boiler | Ewa 24 kW System Boiler | ||||||||
| Gas Circuit *(Natural Gas G20) Heat Load (Hu=10,56 kWh/m3) | DG | DG | LPG | LPG | DG | DG | LPG | LPG | |
| Gas type | G20 | G25 | G30 | G31 | G20 | G25 | G30 | G31 | |
| Gas supply pressure | mbar | 20 | 25 | 30 | 37 | 20 | 25 | 30 | 37 |
| Gas Consumption at Maximum | m³/h | 2,12 | 2,58 | 0,71 | 0,81 | 2,38 | 2,85 | 0,73 | 0,92 |
| Gas Consumption at Minimum | m³/h | 0,36 | 0,42 | 0,13 | 0,14 | 0,37 | 0,43 | 0,11 | 0,11 |
| Premix System | Gas Adaptive | Gas Adaptive | |||||||
| Modulation Range | 1/6 | 1/7 | |||||||
| Efficiency | Class A | Class A | |||||||
| (80/60 °C) Efficiency at Maximum Heat Output | % | 98 | 98 | 97 | 98 | 98 | 98 | 98 | 99 |
| (50/30 °C) Efficiency at Maximum Heat Output | % | 105 | 105 | 102 | 104 | 105 | 105 | 103 | 105 |
| Efficiency at 30% load at 36/30 °C | % | 108 | 108 | 104 | 108 | 108 | 108 | 105 | 107 |
| Seasonal space heating energy efficiency (expressed in terms of GCV) | % | 91,2 | 91,2 | 90,5 | 90,5 | 92 | 92 | 92 | 92 |
| Radiator Circuit | G20 | G25 | G30 | G31 | G20 | G25 | G30 | G31 | |
| Maximum Heat Output Pn (80/60 °C) | kW | 19,4 | 19,6 | 19,5 | 19,4 | 23,7 | 23,7 | 23,6 | 23,7 |
| Minimum Heat Output Pn (80/60 °C) | kW | 3,4 | 3,3 | 3,4 | 3,4 | 3,0 | 3,0 | 3,2 | 2,5 |
| Maximum Heat Output Pn (50/30 °C) | kW | 20,6 | 21,1 | 20,4 | 20,6 | 25,0 | 25,0 | 24,7 | 25,0 |
| Minimum Heat Output Pn (50/30 °C) | kW | 3,7 | 3,6 | 3,54 | 3,6 | 3,60 | 3,60 | 3,55 | 2,90 |
| Temperature selection range (min÷max) High / Low temperature | ºC | 25-80 / 25-47 | |||||||
| Operating Pressure (Minimum / Maximum) | bar | 0,5 / 3 | 0,5 / 3 | ||||||
| Expansion tank useful volume | bar | 7/8 | 7/8 | ||||||
| Pump pressure (at 1000 l/h flow rate) | mH2O | 6,5 | 6,5 | ||||||
| Pump pressure (at 500 l/h flow rate) | mH2O | 6,9 | 6,9 | ||||||
| Max. Pump Flow Rate | m³/h | 2,5 | 2,5 | ||||||
| Pump Energy Efficiency Index (EEI) | £ 0,20 | £ 0,20 | |||||||
| Electricity Circuit / Supply | 230 V +%10; -%15 AC-50Hz | ||||||||
| Electricity Consumption (Max./Min.) | Watt | 86 / 57 | 95/55 | ||||||
| Protection Index | IP | IPX5D | IPX5D | ||||||
| Exhaust Gas Circuit | G20 | G25 | G30 | G31 | G20 | G25 | G30 | G31 | |
| (80/60 °C) Exhaust gas temperature (Min. / Max.) | ºC | 55/78 | 55/78 | 54/78 | 54/78 | 69/71 | 65/70 | 57/70 | 60/70 |
| (50/30 °C) Exhaust gas temperature (Min. / Max.) | ºC | 37/57 | 37/57 | 41/55 | 41/55 | 49/51 | 48/49 | 43/57 | 47/51 |
| NOx | Class | 6 | 6 | ||||||
| Weighted value of Nox (GCV) | mg/kWh | 33 | 33 | 38 | 38 | 20 | 19 | 42 | 31 |
| General | |||||||||
| Dimensions (H x W X D) | mm | 725 x 420 x 288 | 725 x 420 x 288 | ||||||
| Sound Level | dB (A ) | 52 | 52 | ||||||
| Hydraulic Group Material | Composite | Composite | |||||||
| Net Weight / Packed Device Weight | kg | 30/31,8 | 32,6/33,8 | ||||||
| Maximum Flue Lenght (ø60/100 mm) [Horizontal*/Vertical*] | m | 10/11 | 10/11 | ||||||
| Type | kg | B23, B23P, B33, B33P, B53, B53P, C13, C33, C43, C53, C63, C83, C93, C(10)3 | |||||||
| * At the maximum flue distance, the flue lenght should be reduced by 1 meter for every 90° bend and 0,5 meter for every 45° bend | |||||||||
High Protection System/bypass circuit and prevents the pump from overworking
High and Low Water Pressure Protection System
By selecting the pre-heating parameter in your combi, the waiting time for hot water usage is minimized.
Featuring brass and composite components that are resistant to thermal stresses and corrosion, ensuring a long lifespan and years of trouble-free use.
Illuminated, large information screen that allows for control of heating, hot water, pressure, and adjustments.
Operates very quietly thanks to high level of insulation
