Minerwa is the world's smallest combi boiler which is a multi design-award winner. Minerwa provides comfortable, safe and cost-effective operation with "Smart Gas" technology.
*In its class
| UNIT | Minerwa | ||||||
| Gas Circuit (Gas Type / Supply Pressure) | (mbar) | G20 (20) | G25 (25) | G30 (30) | G31 (37) | ||
| Gas Consumption at Minimum / Maximum | m³/h | 0.37 / 2.38 | 0.43 / 2.85 | 0.107 / 0.728 | 0.11 / 0.92 | ||
| Efficiency | G20 | G25 | G30 | G31 | |||
| Useful efficiency at rated heat output and high temperature regime(2) (ŋ4) % | % | 87,6 | 86,8 | 89,7 | 87,7 | ||
| Useful efficiency at 30% of rated heat output and low temperature regime(1) (ŋ1) | % | 97,5 | 97,5 | 96,6 | 97,7 | ||
| Seasonal space heating energy efficiency | % | 92 (Class A) | |||||
| Radiator Circuit | G20 | G25 | G30 | G31 | |||
| Maximum/Minimum Heat Output Pn (80/60 °C) | kW | 23.7 / 3 | 23.7 / 3 | 23.6 / 3.2 | 23.7 / 2.5 | ||
| Maximum Heat Output Pn (50/30 0C) | kW | 25 | 25 | 24,33 | 25 | ||
| Temperature selection range (min÷max) High / Low | °C | 25 ÷ 80 / 25 ÷ 47 | |||||
| Operating Pressure (Minimum/Maximum) | bar | 0.5 / 3 | |||||
| Expansion tank useful volume | bar | 7 | |||||
| Max. Pump Flow Rate | l/h | 2500 | |||||
| Domestic Hot Water Circuit Max./Min. Heat Input | kW | 31.2 / 3.5 | |||||
| Max. Domestic Hot Water flow rate ( (Δt: 30 0C) /Δt: 35 0C) | l/min. | 15 / 13 | |||||
| Minimum / Maximum water pressure | bar | 0.5 / 10 | |||||
| Temperature adjustment range | °C | 35 - 60 | |||||
| Electricity Consumption (Max./Min.) [230 V +%10; -%15] | Watt | 95 / 55 | |||||
| Exhaust Gas Circuit | G20 | G25 | G30 | G31 | |||
| (50/30 °C) Exhaust gas temperature (Min. / Max.) | °C | 49 / 51 | 48 / 49 | 43 / 57 | 47 / 51 | ||
| Weighted value of Nox (Class 6) | mg/kWh | 20 | 19 | 42 | 31 | ||
| General | Protection Index: IPX5D | Sound Level: 55 dB (A) | |||||
| Dimensions (H x W x D) | mm | 595 x 379 x 260 | |||||
| Net / Packed Device Weight | kg | 26 / 29 | |||||
The Gas Adaptive Technology automatically detects gas quality and prevents improper combustion, ensuring safety. Proper combustion maximizes energy efficiency, utilizing the full potential of the gas.

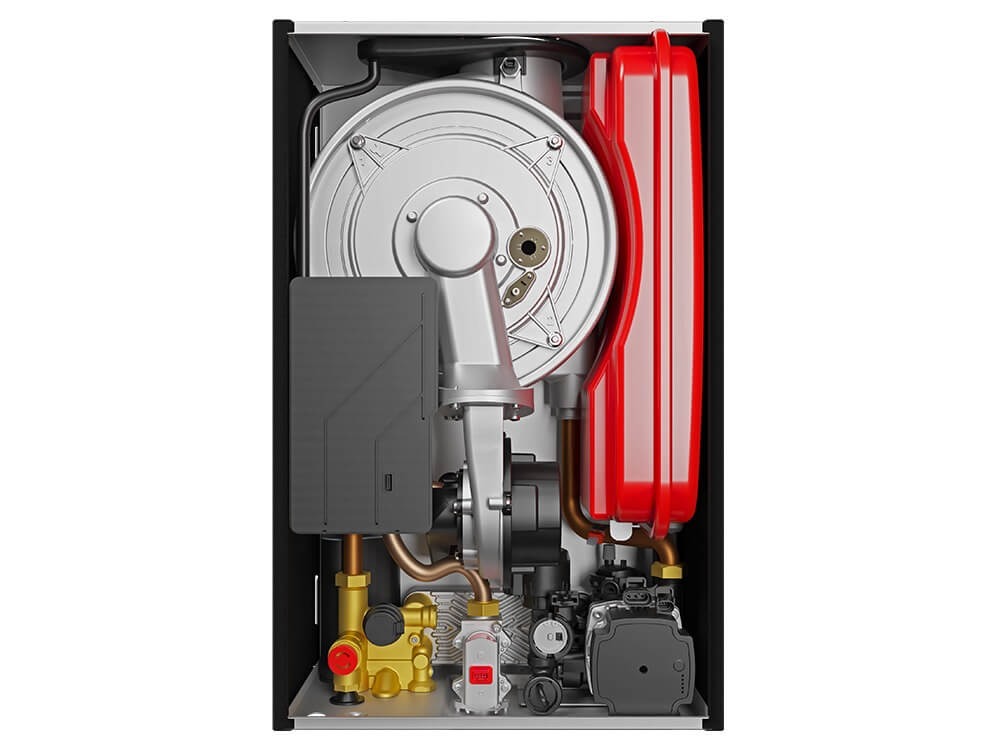

The use of wide-channel, seamless, single-coil stainless steel domestic hot water heat exchangers ensures a long lifespan.
With a wide modulation range of 1:10, it can reduce its power down to 3kW, allowing you to adjust its capacity according to your needs and saving both gas and electricity.
By selecting the pre-heating parameter in your combi, the waiting time for hot water usage is minimized.
With a hot water capacity of up to 15 liters per minute, it allows you to simultaneously use hot water from two taps.
Featuring brass and composite components that are resistant to thermal stresses and corrosion, ensuring a long lifespan and years of trouble-free use.
Recognized for being the 'world's smallest combi' in its segment and for its compact design.

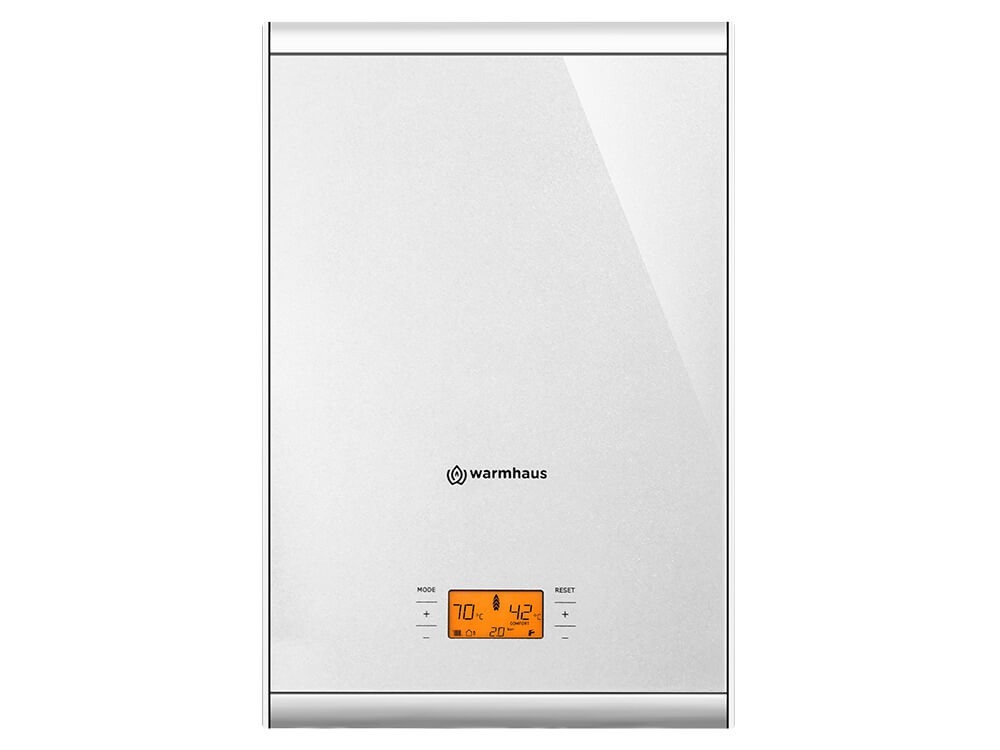

An illuminated, wide information screen that allows you to access information about heating, hot water, pressure, and adjustments.
Operates very quietly thanks to high level of insulation
Achieving the best class level, which is level 6, for NOx as stipulated by the ErP Directive, helps reduce air pollution by lowering harmful NOx emissions.
High Protection System/bypass circuit and prevents the pump from overworking
